Get familiar witH

ABB ACS Drives

ABB’s all-compatible ACS drive platform is the one solution you need​
ia_abb_lockup
ia_HS_6_6_1-1

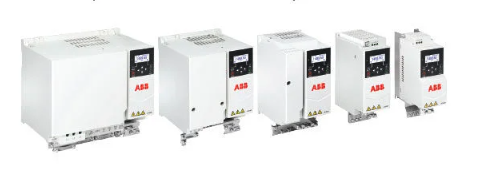

Compact Machinery Drives
abb-drives-1
General Purpose
acs180
ABB ACS180 Drive
High Performance
acs380
ABB ACS380 Drive
Reliable Factory Drives
reliable-factory-drives
General Purpose
abb-acs580
ABB ACS580 Drive
High Performance
acs880
ABB ACS880 Drive

iAutomation Simplified Drives Selection

Easy to select, in-stock, and ready to ship

SELECT

Select your drive
CONNECT

Choose I/O or Network Control
ACCESSORIZE

Pick Optional Add-ons

Select your application type

+ Constant Torque
+ Variable Torque
+ High Torque
+ High Precision

 ➔

Select your input voltage

+ 200VAC Class (208-240V)
+ 500VAC Class (380-500V)

 ➔

Size your drive

+ By motor amperage
+ Check motor nameplate
+ Reference online selection charts

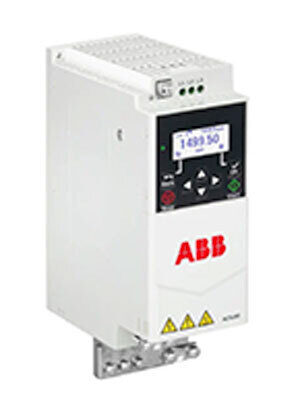

ASC180 Drives
asc-180

STANDARD FEATURES:
Integrated I/O (4D1 / 1 DO / 2 AI / 1 AO / 1 RO
Modbus RTU Serial Interface
Safe Torque Off (SIL3)
Integrated Keypad Interface

SELECT A BASE DRIVE
Base Drive HP Rating A (LD) A (HD) VAC
ACS180-04S-01A8-4 0.75 1.7 1.2 380-480
ACS180-04S-02A6-4 1 2.5 1.8 380-480
ACS180-04S-03A3-4 1.5 3.1 2.1 380-480
ACS180-04S-04A0-4 2 3.8 3.3 380-480
ACS180-04S-05A6-4 2 5.3 3.8 380-480
ACS180-04S-07A2-4 3 6.8 5.6 380-480
ACS180-04S-09A4-4 5 8.9 6.8 380-480
ACS180-04S-12A6-4 7.5 12 9.4 380-480
ACS180-04S-17A0-4 10 16.2 12.6 380-480
ACS180-04S-25A0-4 15 23.7 17.6 380-480
ACS180-04S-033A-4 18.5 35 25 380-480
ACS180-04S-038A-4 25 36 28 380-480
ACS180-04S-045A-4 30 42 38 380-480
ACS180-04S-050A-4 30 48 42 380-480

LD = Light Duty Rating - use up to 110% for 1 min every 10 min HD = Heavy Duty Rating - use up to 150% for 1 min every 10 min

REQUIRED ADD-ONS
None

RECOMMENDED ADD-ONS
Bluetooth Keypad Module (ACS-AP-W)
Keypad mount kit for enclosure door (DPMP-04)

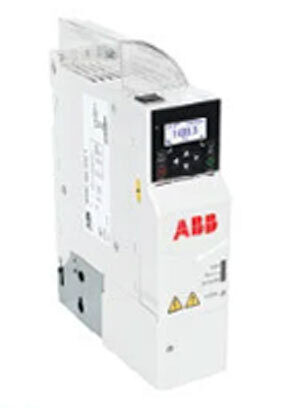

ASC380 Drives
asc-380

STANDARD FEATURES:
Interface for I/O or Fieldbus Add-on*
Safe Torque Off (SIL3)
Integrated Keypad Interface

SELECT A BASE DRIVE
Base Drive HP Rating A (LD) A (HD) VAC
ACS380-040N-01A8-4 0.75 1.6 1.1 380-480
ACS380-040N-02A6-4 1 2.1 1.6 380-480
ACS380-040N-03A3-4 1.5 3 2.1 380-480
ACS380-040N-04A0-4 2 3.5 3 380-480
ACS380-040N-05A6-4 2 4.8 3.4 380-480
ACS380-040N-07A2-4 3 6 4.8 380-480
ACS380-040N-09A4-4 5 7.6 4.8 380-480
ACS380-040N-12A6-4 7.5 11 7.6 380-480
ACS380-040N-17A0-4 10 14 11 380-480
ACS380-040N-25A0-4 15 23 14 380-480
ACS380-040N-032A-4 20 27 21 380-480
ACS380-040N-045A-4 25 34 27 380-480
ACS380-040N-050A-4 30 42 40 380-480

LD = Light Duty Rating - use up to 110% for 1 min every 10 min HD = Heavy Duty Rating - use up to 150% for 1 min every 10 min

REQUIRED ADD-ONS
Fieldbus Connectivity Add-on (FExx-nn-KIT)
or
IO Expansion Add-on (BMIO-01)

RECOMMENDED ADD-ONS
Bluetooth Keypad Module (ACS-AP-W)
Keypad mount kit for enclosure door (DPMP-04)

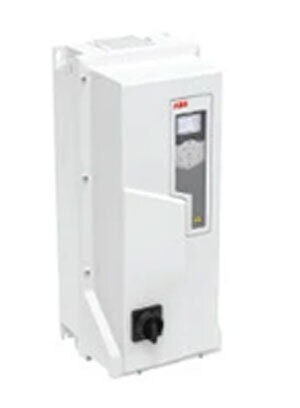

ASC580 Drives
asc-580

STANDARD FEATURES:
Integrated DC Bus Choke
Integrated I/O (6 DI / 2 AI / 2 AO / 3 RO)
Interface Fieldbus Add-on*
Modbus RTU Serial Interface
Safe Torque Off (SIL3)
Bluetooth Keypad Module (+J429)

SELECT A BASE DRIVE
Base Drive HP Rating A (LD) A (HD) VAC
ACS580-01-02A1-4+J429 1 2.1 1.6 380-480
ACS580-01-03A0-4+J429 1.5 3 2.3 380-480
ACS580-01-03A5-4+J429 2 3.5 3 380-480
ACS580-01-04A8-4+J429 3 4.8 3.4 380-480
ACS580-01-07A6-4+J429 5 7.6 4.8 380-480
ACS580-01-012A-4+J429 7.5 12 7.6 380-480
ACS580-01-014A-4+J429 10 14 11 380-480
ACS580-01-023A-4+J429 15 23 14 380-480
ACS580-01-027A-4+J429 20 27 21 380-480
ACS580-01-034A-4+J429 25 34 27 380-480

LD = Light Duty Rating - use up to 110% for 1 min every 10 min HD = Heavy Duty Rating - use up to 150% for 1 min every 10 min

REQUIRED ADD-ONS
None

RECOMMENDED ADD-ONS
Fieldbus Connectivity Add-on (FExx-nn-KIT)
Keypad mount kit for enclousre door (DPMP-04)

CONNECT
acs380-interface
ACS380 I/O Interface BMIO-01 2 DI / 2 DIO / 2 AI / 1 AO
Network Interface* FEIP-21-KIT
FMBT-21-KIT
FEPL-02-KIT
Others		 Ethernet/IP
Modbus TCP/IP
Powerlink
Factory Stock
banner
ACCESSORIZE
accessory
Keypad Module ACS-AP-W Bluetooth enabled for drive setup, diagnosticsm and more
Keypad Mount Kit DPMP-04 Panel mount for Keypad Module (NEMA 4X)
Drive Composer Pro DCPT-01-KIT Drive Programming Software (ease of use)
